IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors

  • 1
  • 2
  • 3

Certification : CE/Rohs/TUV/UL

Supply Ability : 100000 pairs Montly

Delivery Time : 3~6working days

Packaging Details : 1.Plastic bag;2.Carton;3.As per customer's requirements

Model Number : M19

Rated voltage : 300V

Material : Nylon

Place of Origin : China

MOQ : Negotiation

Flame-resistant rating : UL94-V0

Current rating : 15A+5A

Pin : 3+5Pin

Brand Name : Ulinkcon

Price : Negotiation

Payment Terms : T/T,D/P,L/C,D/A,Western Union

Connector type : Quick connector

Contact Now

IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors
20A Waterproof Data Cable Connector 3+5 Pin M19 IP67 Circular Connectors
Quick Description
  • Specialized Configuration: IP67 protection grade, M19 series wire connector with 3+5 pin design (3 pins for power transmission, 5 pins for data transmission), gold-plated contact pins, specially developed for solar power generation systems.
  • Solar-Optimized Waterproof Performance: Complies with IP67 waterproof and dustproof standard, capable of withstanding harsh outdoor environments including heavy rain, dust, and extreme temperature changes.
  • Gold-Plated Conductivity & Material Advantage: All contact pins made of high-purity brass with full gold plating, reducing contact resistance and improving electrical conductivity and anti-oxidation performance.
  • Power & Data Dual-Transmission Design: 3+5 pin separate design with anti-misplug structure for easy distinction between power and data pins.
Electrical Parameters
Number of Poles 3+5 Pin
Current Rating 15A + 5A max.
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60 s.

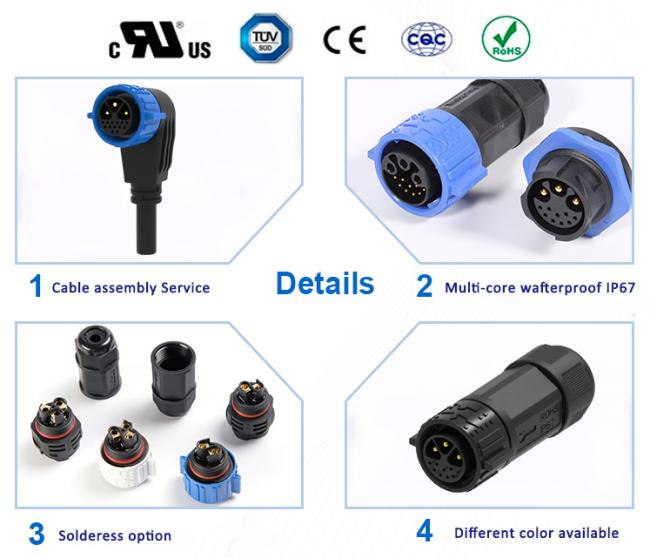

Main Features
  • Push lock quick release system
  • Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
  • 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
  • Field assembly version: both wire to wire and wire to board options
  • Current rated 20A for long time working
  • Cable assembly service supported
  • OEM/ODM welcome
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min) when mated
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 20A max
Min Wire Size OD 3.0mm ~ 6.0mm
Max Wire Size OD 8.0mm ~ 10.0mm
Max Cable Cross Section Area 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Application
  • Product coding machines
  • Inventory product coding
  • Inkjet systems
  • Solar System
  • Industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic & pathology equipment
  • Communications equipment
  • Heavy machinery
Design Sketch
IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
2. Q: How to buy your products?
A: You need to do as followings:
  • Confirm Current Rating and Number of Contacts
  • Confirm Assembly style
  • Confirm Cable Wire gauge
  • Confirm Cable Length and Material
3. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
IP67 M19 Gold Plated Wire Connectors 3+5 Pin IP67 Solar Power Data Connectors
